PIR MOTION SENSOR HC – 7B, India, Sensors
PIR Motion Sensors & Switches

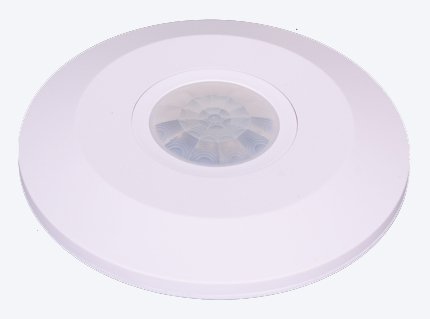

PIR MOTION SENSOR HC 7B

PIR MOTION SENSOR HC – 7B, India, Sensors

PIR Motion Sensor HC -7B is a very high quality PIR Motion Sensor which adopts good sensitivity and integrated circuit. it gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely. Its unique sleek design is the automatic choice of every automation engineer.

Specifications

Power Source

220-240 V/AC
Power Frequency 50/60Hz
Ambient Light >3-2000LUX ( adjustable)
Time Delay Min. 10sec 2min Max 15min 2 min
Rated Load 2000W (Incandascent) and 1000W (CFL)
Detection Range 360
Detection Distance 6m max (<24C)
Working Temperature -20 + 40C
Working Humidity <93%RH
Installation Height 2 . 2 - 4 m
Detection Moving Speed 0.6 - 1.5m/s
